Virtual Private Cloud (VPC) ★★★

Amazon Virtual Private Cloud Documentation

VPC lets us provision a logically isolated section of our infrastructure where we can launch AWS resources in a virtual network that we define. We have complete control over:

• our virtual networking environment, including a selection of our IP address range, creation of subnets
• configuration of route tables
• network gateways

Additionally, we can create a hardware VPN connection between our corporate datacenter and our VPC and leverage the AWS cloud as an extension of our corporative datacenter by default

CIDR, Private vs Public IPv4

CIDR - IPv4 (Classless Inter-Domain Routing)

CIDR is used for Security Groups rules or AWS networking in general. They help to define an IP address range

• 192.168.100.0/32 -> one IP
• 0.0.0.0/0 -> all IPs
• we can also do something like 192.168.0.0/26, which means there are 64 IPs (192.168.0.0 - 192.168.0.63)

A CIDR has two components:

1. the base IP (xx.xx.x.x): it represents an IP contained in the range
2. the subnet mask (/32): defines how many bits can change in the IP

example:

/24 allows 2 ^ (32 - 24) = 2 ^ 8 IPs from the base IP

Private vs Public IPv4

• The Internet Assigned Numbers Authority (IANA) established certain blocks of IPv4 addresses for the use of private (LAN) abd public (Internet) addresses
• Private IP can only allow certain values
  • 10.0.0.0 - 10.255.255.255 (10.0.0.0/8) <- in big networks
  • 172.16.0.0 - 172.31.255.255 (172.16.0.0/16) <- AWS
  • 192.168.0.0 - 192.168.255.255 (192.168.0.0/16) <- home networks

All the rest of the IP on the internet are public IP

Default VPC Overview

• All new accounts have a default VPC
• New instances are launched into default VPC if no subnet is specified
• Default VPC has internet connectivity and all instances have public IP (so that we can use the instance to do like yum update ..)
• We also get a public and private DNS name

For Default VPC

• user-friendly, allowing you to immediately deploy instances.
• All Subnets in default VPC have a route out to the internet.
• Each EC2 instance has both a public and private IP address.

VPC Overview

IPv4 in VPC

• You can have multiple VPCs in a region (max is 5 per region, but it is a soft limit)
• Max CIDR per VPC is 5. For each CIDR
  • min size is /28: 16 IP addresses
  • max size is /16: 65536 IP addresses
• Your VPC CIDR should not overlap with your other networks

Subnets Overview

AWS reserves 5 IPs (first 4 and last 1 in your IP ranges) in each subnet. These 5 IPs are not available for usage and cannot be assigned to an instance.

For example, if your CIDR block is 10.0.0.0/24, then the reserved IPs are:

• 10.0.0.0: Network address
• 10.0.0.1: Reserved by AWS for the VPC router
• 10.0.0.2: Reserved by AWS for mapping to AWS-provided DNS
• 10.0.0.3: Reserved by AWS for future usage
• 10.0.0.255: Network broadcast address. AWS does not support broadcast in a VPC

Internet Gateways

• Internet Gateways helps our VPC instances connect with the internet
• It scales horizontally and is HA and redundant
• Must be created separately from VPC
• One VPC can only be attached to one Internet Gateways and vice versa (like “1-to-1 relationship”)
• Internet Gateway is also a NAT for the instances that have a public IPv4

IGW on their own do not allow internet access, so Route tables must also be edited

NAT Instances and NAT Gateways

NAT Instance (Outdated but in the exam)

NAT stands for Network Address Translation, it allows instances in private subnets to connect to the internet

• When you try to create a NAT Instance, disable the source/destination check on the instance first
• NAT instances must be in a public subnet.
• Route table must be configured to route traffic from the private subnet to the NAT instance, for this to work.
• Must have Elastic IP attached to it
• The amount of traffic that NAT instances can support depends on the instance size. If you are bottlenecking, increase the instance size.
• You can create high availability using Autoscaling Groups, multiple subnets in different AZs, and a script to automate failover.
• It is behind the Security Group

Must manage security groups and rules

• Inbound
  • Allow HTTP/HTTPS traffic from Private Subnets
  • Allow SSH from your home network (access provided through Internet Gateway)
• Outbound
  • Allow HTTP/HTTPS traffic to the internet

NAT Gateway

• AWS managed NAT, higher bandwidth, better availability, no administration
• NAT Gateways are redundant inside the Availability Zone. One NAT gateway per availability zone.
• Not associated with security groups.
• NAT Gateway is created in a specific AZ, using an Elastic IP
• No needed to disable the source/destination check.
• To have high availability, we should create a NAT gateway in each availability zone.
• Starts at 5 Gbps and scales currently up to 45 Gbps. Scaled Automatically
• Requires an Internet Gateway
  • Private Subnet will talk to NAT Gateway, which will talk to IGW so that our private instance can talk to the internet

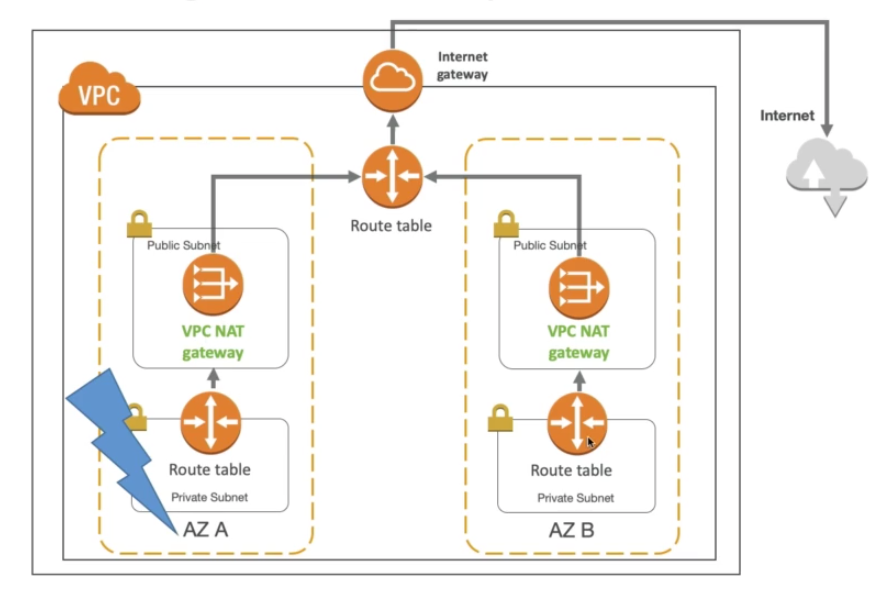

NAT Gateway with High Availability

• NAT Gateway is resilient within a single-AZ
• However, you must create multiple NAT Gateway in multiple AZ for fault-tolerance
• There is no cross AZ failover needed because if an AZ goes down it does not need NAT

Comparison of NAT Instance and NAT Gateway

https://docs.aws.amazon.com/vpc/latest/userguide/vpc-nat-comparison.html

DNS Resolution Options

• enableDnsSupport DNS Resolution setting
  • Default True
  • Helps decide if DNS resolution is supported for the VPC
  • If True, queries the AWS DNS server at 169.254.169.253
• enableDnsHostname DNS Hostname setting
  • False by default for custom VPC, True for Default VPC
  • Won’t do anything unless enableDnsSupport = True
  • If True, Assign public hostname to EC2 instance if it has a public

If you use custom DNS domain names in a private zone in Route 53, you must set both these attributes to true

NACL & Security Groups

Inbound / Outbound for

• Security Group is stateful, which means, even if the outbound rule denies everything if an inbound request passes, then this request can also pass the outbound (rule checking)
• NACL is stateless, which means, inbound and outbound are evaluated separately

Network ACLs

• NACL are like a firewall that controls traffic from and to subnet
• Default NACL allows everything outbound and everything inbound
• One NACL per Subnet, new subnets are assigned the Default NACL
• Define NACL rules
  • Rules have a number (1 - 32766), the lower number, the higher precedence
    • for example, if you define #100 ALLOW <IP> and #200 DENY <IP>, IP will be allowed, since 100 has higher precedence (#100 < #200)
    • 100, 200 is rule number, or you can say it as "weight", whatever works for you to memorize it
  • Last rule is an asterisk (*) and denies a request in case of no rule match
  • AWS recommends adding rules by an increment of 100
• Newly created NACL will deny everything
• NACL is a great way of blocking a specific IP at the subnet level

This works like a security group for all (or any) subnets in your VPC. We can add allow/deny rules. The default VPC comes with a default network ACL, and by default, it allows all outbound and inbound traffic.

When creating a custom network ACLs, by default denies all inbound and outbound traffic until you add rules. Each subnet in your VPC must be associated with a network ACL. If you don’t explicitly associate a subnet with a network ACL, the subnet is automatically associated with the default network ACL.

To block IP Addresses, we need to use ACLs, not security groups.

• A network ACL can be associated with N subnets, but 1 subnet can only be associated with 1 NACL.
• Network ACLs contain a numbered list of rules that are evaluated in order, starting with the lowest numbered rule.
• Network ACLs have separate inbound and outbound rules, and each rule can either allow or deny traffic.
• Network ACLs are stateless; responses to allowed inbound traffic are subject to the rules for outbound traffic and vice versa.

Ephemeral Ports

In practice, to cover the different types of clients that might initiate traffic to public-facing instances in your VPC, you can open ephemeral ports 1024-65535

VPC How-To

1. Go To VPC service > Your VPCs > Create VPC
2. Fill IPv4 CIDR block and tenancy and click on create.

No subnets and internet gateways have been created at this moment. Route table, network ACLs and security groups have been created. Security groups can’t span VPCs.

1. Go to Subnets -> Create a subnet
2. Name it, select our VPC, the availability zone, and the IPv4 CIDR block. Finally, click on create.

By default, no subnet has public IP. To do this, select the subnet and click on actions and make it auto-apply public IP. Amazon always reserve 5 IP addresses with your subnets.

1. Go to Internet Gateways -> Create internet gateway
2. Name it and click on create.
3. Select it and with actions, attach the internet gateway to the VPC. (Only ONLY VPC can be attached to ONE internet gateway)

At the moment, all our VPC are public because our routes allow it. Let’s fix this:

1. Go to Route Tables -> select our route table and select “Routes”
2. Edit routes
3. Fill destination (any IP) with a target internet gateway
4. Go to Subnet Associations
5. Edit subnet associations to select the subnet that needs to be public.

Now, we can’t ssh-access to our private EC2 instance from our public subnet.

1. Go to EC2 > Security Groups -> Create Security Group
2. Select our VPC, type “All ICMP” (protocol ICMP), and the source the public subnet.
3. Select our VPC, type “SSH” and the source the private subnet.
4. Change the security group of our EC2 instance.

VPC Peering

• Allows you to connect one VPC with another via a direct network route using private IP addresses
• Instances behave as if they were on the same private network
• Must not have overlapping CIDR
• We can peer VPCs with other AWS accounts as well as with other VPCs in the same account
• You must update route tables in each VPC’s subnets to ensure instances can communicate

Peering is a star configuration: 1 central VPC peers with 4 others

• VPC Peering can work inter-region, cross-account
• You can reference a security group of a peered VPC (works across account)

VPC Endpoints

• Endpoints allow you to connect to AWS Services using a private network instead of the public network
• Scales horizontally and are redundant
• Endpoints remove the need for IGW, NAT Gateway, etc.. to access AWS Services
• Interface: provisions an ENI (private IP address) as an entry point (must attach Security Group) for most AWS Services
• Gateway: provisions a target and must be used in a routing table - S3 and DynamoDB
• In case of any issues:
  • Check DNS Setting Resolution in your VPC
  • Check Route Tables

Enable Private DNS Name: To use private DNS names, ensure that the attributes 'Enable DNS hostnames' and 'Enable DNS support' are set to 'true' for your VPC

An interface endpoint is an elastic network interface with a private IP address that serves as an entry point for traffic destined to a supported service.

A VPC endpoint enables you to privately connect your VPC to supported AWS services and VPC endpoint services powered by PrivateLink without requiring an internet gateway, NAT device, VPN connection, or AWS Direct Connection. Instances in your VPC do not require public IP addresses to communicate with resources in the service. Traffic between your VPC and the other service does not have the Amazon network.

Endpoints are virtual devices. They are horizontally scaled, redundant, and highly available VPC components that allow communication between instances in your VPC and services without imposing availability risks or bandwidth constraints on your network traffic.

There are two types: interface and gateway. Currently, gateway endpoints support S3 and DynamoDB

VPC Flow Logs

Flow Logs is a feature that enables you to capture information about the IP traffic going to and from network interfaces in your VPC. Flow log data is stored using Amazon S3 / CloudWatch Logs. After you’ve created a flow log, you can view and retrieve its data in Amazon CloudWatch Logs.

• There are three levels of abstraction:
  • VPC Flow Logs
  • Subnet Flow Logs
  • Elastic Network Interface Flow Logs
• Helps to monitor & troubleshoot connectivity issues
• You cannot enable flow logs for VPCs that are peered with your VPC unless the peer VPC is in your account.
• You cannot tag a flow log.
• After you’ve created a flow log, you cannot change its configuration; for example, you can’t associate a different IAM role with the flow log.
• Not ALL IP Traffic is monitored
  • internal traffic done by AWS mostly
    • traffic generated by instances when they contact the AWS DNS Server
    • traffic generated by a windows instance
    • DHCP traffic / reserved IP Address (five addresses I believe ?)

To query VPC Flow Logs, we can use Athena on S3 or CloudWatch Logs Insights

Bastion Hosts

• We use a Bastion Host to SSH into our private instances
• The bastion is in the public subnet which is then connected to all other private subnets
• Bastion Host security group must be tightened
• A Bastion is used to securely administrate EC2 instances (using SSH or RDP).
• We cannot use a NAT Gateway as a Bastion host.

Site-to-Site VPN

Virtual Private Gateway

• VPN concentrate on the AWS side of the VPN connection
• VGW is created and attached to the VPC from which you want to create the Site-to-Site VPN connection
• Possibility to customize the ASN

Customer Gateway

• Software application or physical device on the customer side of the VPN connection
• IP Address
  • Use static, internet-routable IP address for your customer gateway device
  • if a CGW behind NAT (NAT-T), use the public IP address of the NAT

Direct Connect

AWS Direct Connect is a cloud service solution that makes it easy to establish a dedicated network connection from your premises to AWS. Therefore, we can establish private connectivity between AWS and your datacenter, office, or colocation environment, which in many cases can reduce your network costs, increase bandwidth throughput and provide a more consistent network experience than Internet-based connections.

• Provides a dedicated private connection from a remote network to your VPC
• Dedicated connection must be set up between your DC and AWS Direct Connect locations
• You need to set up a Virtual Private Gateway on your VPC
• Access public resources (S3) and private (EC2) on the same connection
• Use cases:
  • Increase bandwidth throughput - working with large datasets, lower cost
  • More consistent network experience - applications using real-time data feeds
  • Hybrid Environments (on-prem + cloud)
• Supports both IPv4 and IPv6

If you want to set up a Direct Connect to one or more VPC in many different regions (same account), you must use a Direct Connect Gateway

Direct Connect - Connection Types

Dedicated Connections

• Physical Ethernet port dedicated to a customer
• Request made to AWS first, then completed by Direct Connect Partners

Hosted Connections

• Connection requests are made via AWS Direct Connect Partners
• Capacity can be added or removed on demand
• 1,2,5,10 Gbps available at select AWS Direct Connection Partners

Lead times are often longer than 1 month to establish a new connection

Direct Connect - Encryption

• Data in transit is not encrypted but is private
• AWS Direct Connect + VPN provides an IPsec-encrypted private connection
• Good for an extra level of security, but slightly more complex to put in place

Egress Only Internet Gateway

Egress means Outgoing

• Egress Only Internet Gateway is for IPv6 only
• Similar function as a NAT, but a NAT is for IPv4
  • IPv6 is all public address
• Egress Only Internet Gateway gives our IPv6 instances access to the internet, but they won’t be directly reachable by the internet
• After creating an Egress only Internet Gateway, edit the route tables

AWS PrivateLink (VPC Endpoints Services)

• Most secure & scalable way o expose a service to 1000s of VPC (own or other accounts)
• Does not require VPC Peering, Internet Gateway, NAT, Route Tables
• Requires a network load balancer (Service VPC) and ENI (Customer VPC)

AWS ClassicLink (Deprecated)

EC2-Classic or AWS ClassicLink

• EC2-Classic: instances run in a single network shared with other customers
• Amazon VPC: your instances run logically isolated to your AWS account
• Classic Link: allows you to link EC2-Classic instances to a VPC in your account
  • Must associate a security group
  • Enables communication using private IPv4 addresses
  • Removes the need to make use of public IPv4 addresses or Elastic IP addresses

Likely to be distractors at the exam

VPN CloudHub

• Provide secure communication between sites, if you have multiple VPN connections
• Low-cost hub-and-spoke model for primary or secondary network connectivity between locations
• it’s a VPN connection so it goes over the public internet

Transit Gateway

Connects your VPCs and on-premises networks through a central hub. This simplifies your network and puts an end to complex peering relationships. It acts as a cloud router – each new connection is only made once.

• For having transitive peering between thousands of VPC and on-premises, hub-and-spoke (star) connection
• Regional resource, can work cross-region
• Share cross-account using Resource Access Manager (RAM)
• You can peer Transit Gateways across regions
• Route Tables: limit which VPC can talk with other VPC
• Works with Direct Connect Gateway, VPN connections
• Supports IP Multicast (not supported by any other AWS service)

Another use case for Transit Gateway is to increase the bandwith of your site-to-site VPN connection using ECMP.

• ECMP = Equal-cost multi-path routing
• Routing strategy to allow to forward a packet over multiple best path
• Use case: create multiple Site to-Site VPN connections to increase the bandwidth of your connection to AWS

You can share your direct connect connection between multiple accounts using Transit Gateway.

VPC Section Summary
